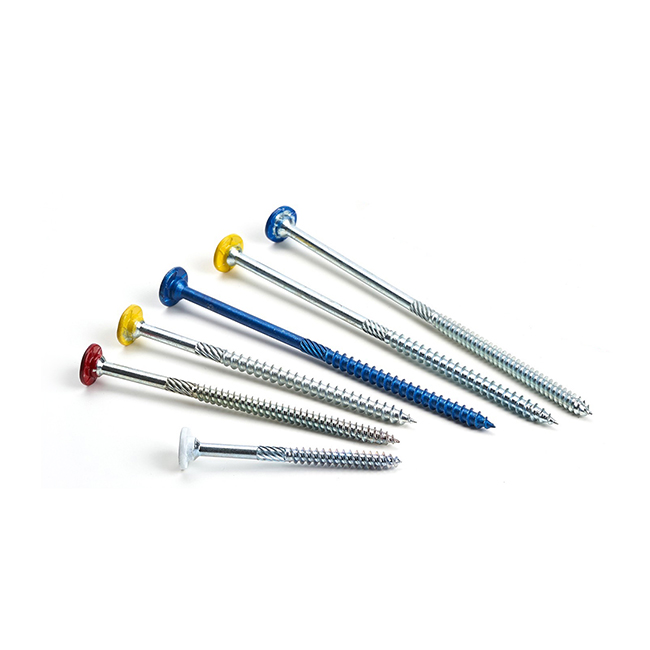

Titian Lok Timber Truss Screws for Structural Timber Connections

Titian Lok Timber Truss Screws are structural wood screws designed for high-strength timber-to-timber connections, including timber truss assemblies, top plate connections, rafter-to-stud connections, sole-to-rim connections, and stud-to-sole connections. The full-thread design provides strong fastening and excellent pull-out resistance for structural wood applications.

Structural Timber Screws for Reliable Timber-to-Timber Connections

Designed for professional construction and structural woodworking applications, Titian Lok Timber Truss Screws provide a secure connection between timber components while helping improve installation efficiency.

The screws are suitable for structural timber assemblies and can be manufactured in different materials, sizes, thread configurations, and specifications according to application requirements, customer drawings, or samples.

Titian Lok Timber Truss Screw Specifications

The current product page specifies these material, gauge, length, and standard options.

Key Features of Titian Lok Timber Truss Screws

Full-Thread Design for Strong Timber Connections

The full-thread design is intended to fasten two timber components together while providing strong pull-out resistance. This makes the screw suitable for structural timber connections where reliable fastening performance is important.

Type 17 Cutting Point

The Type 17 cutting grooves help collect and remove sawdust during installation and can reduce the likelihood of timber cracking.

This feature is particularly useful when fastening timber close to an edge or in applications where minimizing timber splitting is important.

Asymmetric Thread for Improved Pull-Out Resistance

The asymmetric thread geometry is designed to increase pull-out resistance while firmly drawing timber components together.

It can also help close gaps between multiple timber members in multi-ply assemblies.

Ribs for Clean Countersinking

The ribs under the head help the screw sink firmly and cleanly into the timber, creating a flatter finished surface after installation.

Special Drive for Installation Efficiency

The special drive is designed to match the screw head securely and improve installation productivity. It can also help reduce the risk of the screw falling from the driver during elevated installation work.

Common Applications for Structural Timber Screws

Titian Lok Timber Truss Screws can be used for a variety of structural timber connections, including:

• Timber truss structures
• Top plate connections
• Rafter-to-stud connections
• Sole-to-rim connections
• Stud-to-sole connections
• Timber-to-timber fastening
• Multi-ply timber assemblies
• Structural wood construction

The product page specifically identifies timber truss structures and structural timber connections as key applications.

Structural Timber Screw Options for Different Applications

Different construction environments require different combinations of material, dimensions, thread design, and corrosion resistance.

SANN MUO can provide structural timber screws using stainless steel, carbon steel, or alloy steel, with specifications available according to international standards or customer requirements.

For projects requiring customized fastening performance, screw specifications can also be developed according to customer drawings and samples.

Frequently Asked Questions About Structural Timber Truss Screws

Q. What are Titian Lok Timber Truss Screws used for?

Titian Lok Timber Truss Screws are designed primarily for structural timber-to-timber connections, including timber truss structures and connections between plates, rafters, studs, soles, and rims.

Q. Are these screws suitable for structural timber applications?

Yes. The product is specifically designed as a structural wood screw for timber-to-timber fastening and timber truss applications.

Q. What materials are available for Titian Lok Timber Truss Screws?

Available materials include stainless steel 304, 316, and 410; carbon steel 1022 and 1018; and alloy steel 10B21 and 10B33.

Q. What sizes are available?

The current specification range is #8–#18 and M4–M12, with lengths from 1/2" to 10" and 12 mm to 250 mm.

Q. Can SANN MUO manufacture screws according to customer specifications?

Yes. The product can be manufactured according to applicable DIN, IFI, ISO, ASTM, or ASME standards, as well as customer drawings and samples.

Q. Can I use these screws for timber truss connections?

Yes. Timber truss structures are one of the stated common applications for this product.

Q. What is the advantage of the Type 17 point?

The Type 17 cutting grooves help remove sawdust during installation and can reduce timber cracking, making the design useful for timber fastening applications where splitting is a concern.

Q. Do you provide customized structural timber screws?

Yes. SANN MUO can develop and manufacture screw specifications based on customer drawings, samples, and application requirements.

Q. Can overseas buyers purchase structural timber screws directly?

SANN MUO serves international markets and provides customized screw manufacturing solutions for overseas customers.

Q. Can this product be used as a second-source supplier option?

Yes. For distributors, construction suppliers, and manufacturers looking to reduce supplier concentration risk, SANN MUO can be evaluated as an alternative or second-source supplier for structural timber screws, subject to specification and application requirements.
